XMAS SALE $1,549 $1‚699
*Price does not include shipping or dealer setup fees
Engineered for young riders ready to take their off-road adventures to the next level. Powered by a high-torque planetary-geared hub motor peaking at 700W and a 48V 10Ah lithium-ion battery, the eKB-M16 delivers up to 51 N·m of torque and a range of up to 40 km
BATTERY
48V 10Ah Li-ion
MAX SPEED
32km/h
MAX TORQUE
≥ 51 N.m
Drag to explore 360°
Specifications
| POWERTRAIN | |
|---|---|
| Motor Type: | Planetary-Geared PM Hub Motor |
| Battery: | 48V 10Ah Li-ion |
| Cooling: | Air-Cooled |
| Riding Mode 1: | 10 km/h |
| Riding Mode 2: | 24 km/h |
| Riding Mode 3: | 32 km/h |
| Max. Torque: | ≥ 51 N.m |
| Peak Power: | 700 W |
| Max. Range @ 10km/h: | 40 km |
| Charging Time(220V AC/110V): | 5.5h Standard / 3h Fast |
| Chassis | |

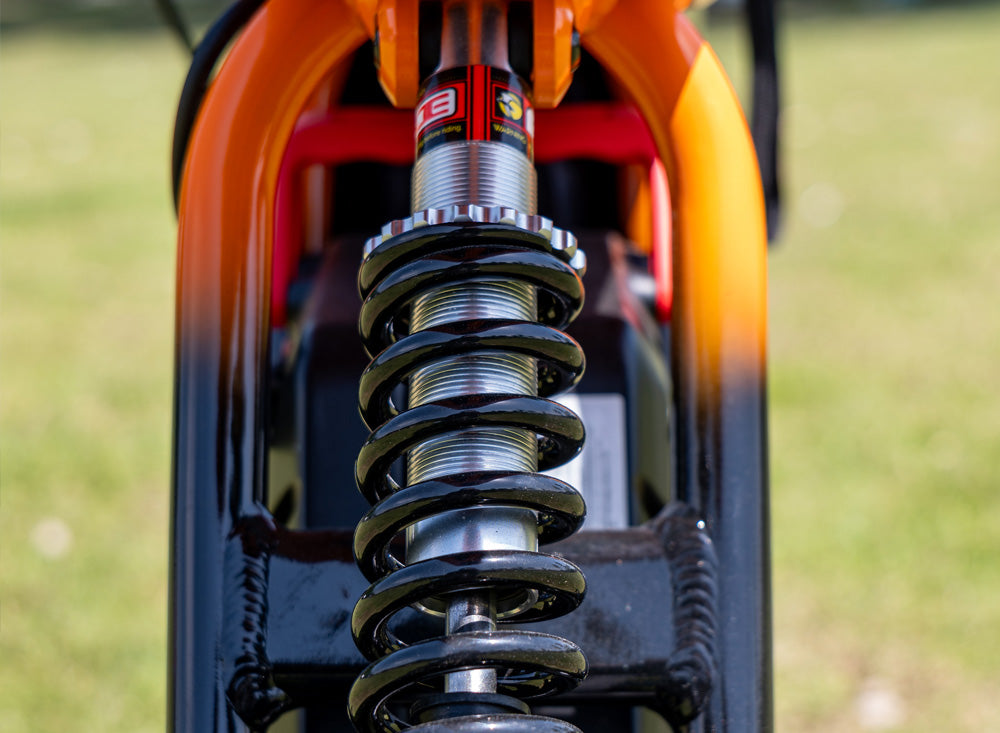

| Front Fork: | Ø 28.6 mm, Adjustable Preload, 35 mm |

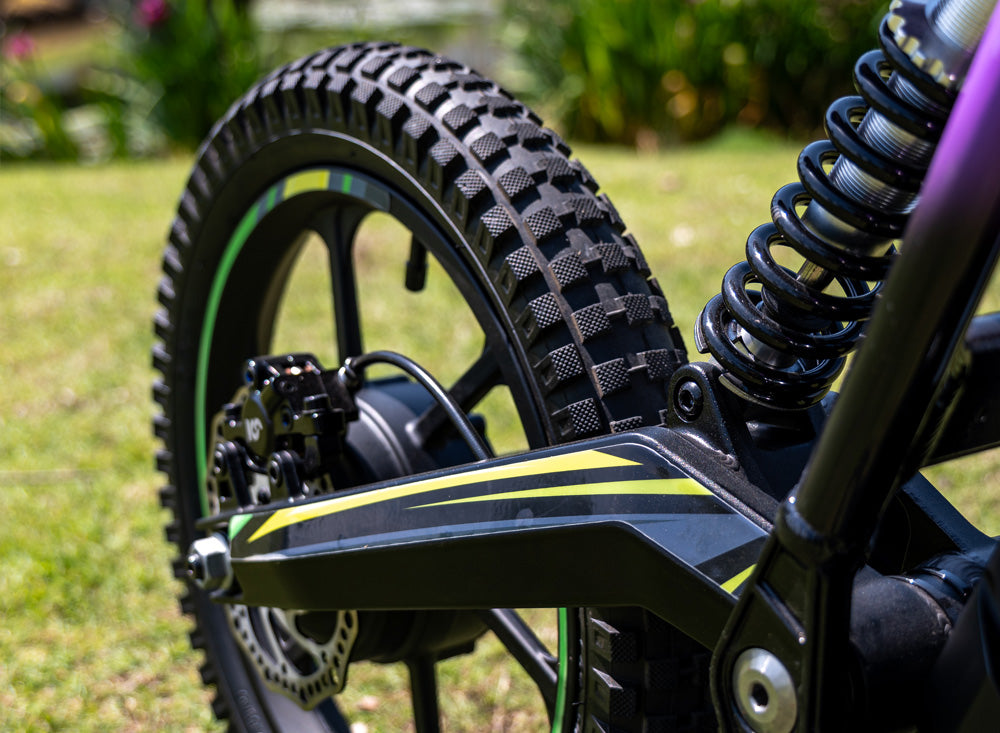

| Rear Shock: | Adjustable Preload, 30 mm |
| Tires: | F&R 16x2.4 MX |
| Front Brake: | Hydraulic Disc, Ø 160 mm |
| Rear Brake: | Hydraulic Disc, Ø 160 mm |
| Dimensions | |
| L x W x H: | 1210 x 550 x 700 mm |
| Seat Height: | 540 mm |
| Ground Clearance: | 155 mm |
| Wheelbase: | 800 mm |
| Curb Weight: | 20.3 ± 0.1kg |
